Nocpix ACE H50R 3x 640x512 50mm Thermal Scope w/ LRF & Ocular Magnifier
Nocpix ACE H50R 3x 640x512 50mm Thermal Scope with Laser Range Finder & Ocular Magnifier.
Introducing the Nocpix ACE H50R, the flagship thermal riflescope designed for all hunting environments. It features a in-company developed 640x512 thermal sensor, integrated LRF, and advanced Reality+ and Vision+ systems.
Deliver unparalleled image quality and superior performance.
Designed to feel like a traditional day optic, the ACE is compatible with bolt action or semi-automatic rifles using standard 30 mm mounts and rings. The combination of an internal USB-C charging battery and a removable 18650 style rechargeable battery allows users to hot-swap batteries in the field to run indefinitely. A 1-3x ocular magnifier provides optical magnification of the 2560×2560 round AMOLED display inside the eyepiece. The Vision+ system pairs this high-resolution display with a 15 mK NETD sensor for an incredibly detailed and precise image.
Agile and Precise Built-in LRF
The ACE is equipped with an integrated LRF, offering laser range-finding up to 1300 yards with true optical axis alignment, ensuring precise distance measurements while maintaining a sleek and elegant design.
Reality+ imaging enhancement
Nocpix's proprietary Reality+ image processing algorithm effectively eliminates ambient temperature noise, improving contrast and detail.
New Vision+ system
The new Vision+ system features a ROUND 1.03-inch AMOLED screen with 2560 x 2560 pixels and industry-leading eyepiece zoom for direct optical magnification. Unlike conventional e-zoom, it prevents blurring and distortion in close-up shots. Enjoy high-resolution images and a wider field of view for a comprehensive and comfortable viewing experience.
Dual battery system for increased capacity
The ACE series is equipped with a dual battery system that includes an integrated 4,000 mAh battery and an additional, replaceable 18650 battery. This system ensures a reliable power supply for longer hunting trips.

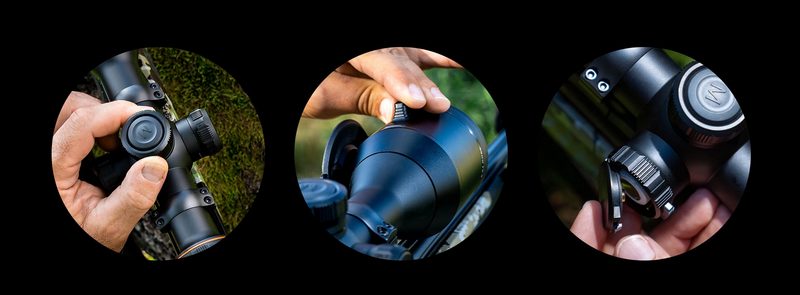

Outdoor-Friendly Design
The ACE incorporates thoughtful features such as a focus adjuster, charging cover, and a Gallery feature for direct video playback, significantly enhancing user convenience.

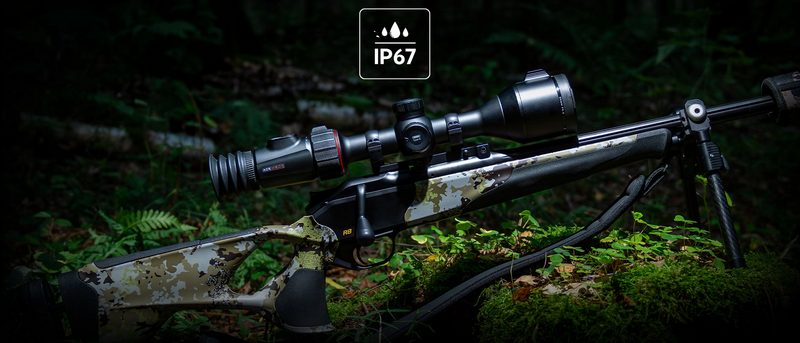

Rigorous Testing & High-durability
Crafted from high-strength aluminum alloy, the ACE undergoes rigorous impact resistance testing, ensuring exceptional robustness and durability for years to come.

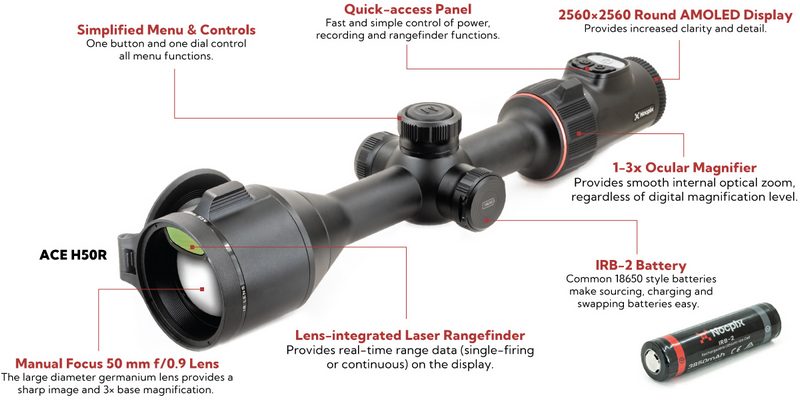

Standout Features
- A 1-3x optical ocular magnifier provides additional magnification of the display without any reticle shift or digital zoom.
- Lens-integrated laser rangefinder adds rangefinding capability to the optic and better laser alignment without adding bulk.
- A ballistic calculator function displays bullet drop values based on the laser rangefinder input data and a user-customized cartridge profile.
- High-contrast round 2560×2560 AMOLED display provides increased clarity and detail.
- Simplified controls offer improved ergonomics and a better user experience in the field.
- The ACE series is equipped with a dual battery system that includes an integrated 4,000 mAh battery and an additional, replaceable 18650 battery. This system ensures a reliable power supply for longer hunting trips.
- Charge through the unit with a unique lock-out USB-C port design.

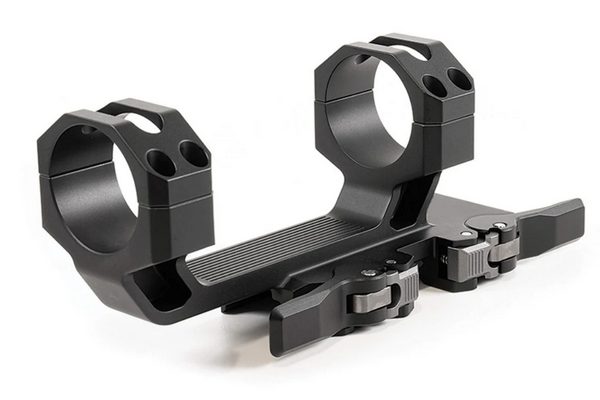

Noxpix Mount
This Nocpix Thermal Scope comes with a 30mm one-piece quick-detach scope mount with dual-locking levers to mount the scope on any rifle with a Picatinny rail. The QD design makes it easy to swap out your thermal optic with a day scope, or share one thermal on multiple rifles.
Optics
Objective Focal Length: 50mm
Detection Range: 2850 Yards
Digital Magnification: 8x
Optical Magnification: 3x
Objective Lens Material: Germanium
Horizontal Angular Field of View: 8.8°
Vertical Angular Field of View: 7.7°
Objective Diameter: 50mm
Objective F#: 0.9
Focusing Mechanism: Manual Focus
Eye Relief: 50mm
Diopter Range: -5 to +5
Display Type: AMOLED
Display Resolution: 2560×2560
Sensor Specifications
Device Technology: Thermal Imaging
Sensor Type: Nocpix 640
Sensor Resolution: 640×512px
Sensor Pixel Size: 12μm
Sensor Frame Rate: 60hz
Thermal Sensitivity: <15mk
Non-Uniformity Correction (NUC): Manual, Automatic, Semi-Automatic
Features & Performance
Color Palettes: White Hot, Black Hot, Red Hot, Color, Violet, Crimson, Viridian
Rangefinder: Integrated 1300 yd LRF
Picture-in-Picture: Yes
Connector Output: Power/Data
User-Updatable Firmware: Yes
Mobile App: Yes
One-Shot Zero: Yes
Stand-by Mode: Yes
Connector Type: USB-C
Wifi: Yes
Onboard Recording: Yes
Image Capture: Yes
Video Output: Yes
Storage Capacity: 64GB
Power Source: USB-C External, 18650 Battery, Built-In Battery Pack
Run Time: 7+ hours
Manufacturer Warranty: 5 Years with 5 day turnaround time
Startup Time: <10 Seconds, Instant from Standby
External Power Source: USB-C
Physical
Length: 14.37"
Width: 3.54"
Height: 2.68"
Weight: 39.5 oz
Housing Material: T-6063 Aluminum
Environmental Specifications
Operating Temperature Range: -4°F~122°F
Recoil Rating: 1000 g/s² (300 Win./7mm Mag)
Ingress Protection: IP67
| Manufacturer | Nocpix |
|---|---|
| SKU | ACE-H50R |
| GTIN (UPC / EAN) | 850048751415 |
| Weight (grams) | 1120 |
| Country of manufacture | China |
| Minimum magnification | 3.00 x |
| Maximum magnification | 24.00 x |
| Center tube diameter | 30mm |
| Front lens diameter | 50mm |
| Productgroup | Thermal imaging scopes |
| Manufacturer warranty | 5 years |
| Color | black |
| Reticle | Multi reticle |
