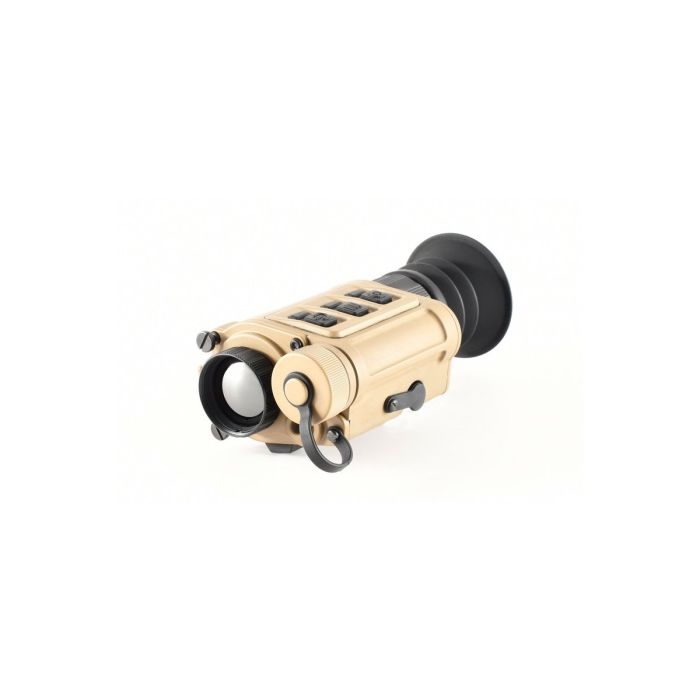

InfiRay RICO Micro RH25 640 12µm 25mm Multi-Purpose Thermal Monocular

100 100
(1) View Reviews
$3,999.00 $5,499.00
Delivery time on requestDelivery time on request
  • High quality product
  • Fast shipping
  • No sales tax outside of Texas


InfiRay Outdoor RICO MICRO 640 12 Micron 25mm Multi-Purpose Thermal Monocular.

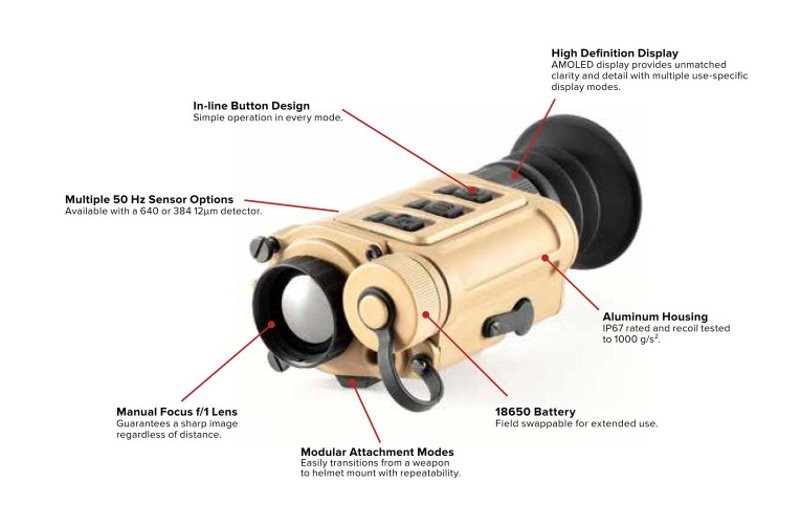

The RICO MICRO Series is an advanced electro-optic device miniaturized to deliver remarkably versatile functionality: Handheld, helmet mount, weapon mount, and clip-on. Weighing less than a pound, the MICRO will fit in the palm of your hand and can be used with standard dovetail helmet mounts or rifle-mounted as a stand-alone or clip-on weapon sight.

InfiRayOutdoor is blazing a new trail with features never-before-seen in a helmet-mounted thermal, such as onboard recording, onboard video play-back, and a high definition AMOLED display. The RH25 also features InfiRay’s latest high-performance 640x512, 12 μm sensor technology, MATRIX III processing, and a manual-focus f/1.0 objective lens to create an image that is unlike anything in its class.

InfiRay Outdoor’s cutting edge manufacturing techniques and the highest-quality components on the market combine to produce an optic that is a step ahead of the competition in size, weight, and performance. The RICO MICRO has the features night hunters want and is more capable than optics twice the price and twice the size.

Device Technology: Thermal Imaging
Sensor Resolution: 640×512
Sensor Frame Rate: 50hz
Sensor Pixel Size: 12μm
Optical Magnification: 1x
Digital Magnification: 4x
Detection Range: 1375 Yards
Objective Focal Length: 25mm f/1.0
Objective Diameter: 25mm
Objective F#: 1.0
Onboard Recording: Video and Image

IRayUSA RICO MICRO 640 RH25 features

Optics
Optical Magnification: 1x
Digital Magnification: 4x
Objective Lens Material: Germanium
Horizontal Angular Field of View: 17.5°
Vertical Angular Field of View: 14°
Detection Range: 1375 Yards
Objective Focal Length: 25mm f/1.0
Objective Diameter: 25mm
Objective F#: 1.0
Focusing Mechanism: Manual Focus
Eye Relief: 35mm
Display Type: AMOLED
Diopter Range: -4 - +4
Display Resolution: 1024×768

Environmental Specifications
Operating Temperature Range: -4°F to 122°F
Recoil Rating: 1000 g/s² (300 Win./7mm Mag)
Ingress Protection: IP67

Sensor Specifications
Device Technology: Thermal Imaging
Sensor Type: InfiRay MICRO II
Sensor Resolution: 640×512
Non-Uniformity Correction (NUC): Manual, Automatic, Semi-Automatic
Spectral Response: 8-12 Microns
Sensor Frame Rate: 50hz
Sensor Pixel Size: 12μm
Thermal Sensitivity: <50mk

Physical
Mounting Interface: MUM rail/Picatinny STD-1913 rail, PICTAIL optional
Housing Material: Aluminum
Length: 4.52 in
Height: 2.55 in
Width: 1.88 in
Weight: 12.7 oz

Features & Performance
Reticle: 7 types
Connector Type: "Data Cable with USB, BNC, and 7-Pin Connectors"
Color Palettes: White Hot, Black Hot, Red Hot, Color
User-Updatable Firmware: Yes
Mobile App: Yes
Storage Capacity: 64 gb
Connector Output: Analog
Picture-in-Picture: No
One-Shot Zero: No
Stand-by Mode: Yes
Rangefinder: No
Run Time: 4 Hours
Power Source: 18650 Rechargeable
Wifi: Yes
Onboard Recording: Video and Image
Image Capture: Yes
Video Output: Analog RS-170/NTSC
Startup Time: <10 Seconds, Instant from Standby
External Power Source: Yes, 7-Pin to USB 5V
Warranty: 5 Years with 5 day turnaround time
Country of Manufacture: China



Manufacturer Infiray Outdoor
SKU RH25
GTIN (UPC / EAN) 850029093589
Weight (grams) 360
Country of manufacture China
Minimum magnification 1.00 x
Maximum magnification 4.00 x
Front lens diameter 25mm
total length (cm) 11.50 cm
Material Aluminium
Productgroup Helmet mounted optics, Spotting scopes, Thermal imaging scopes, Thermal imaging monoculars, Riflescopes
Manufacturer warranty 5 years
Color beige
Reticle Multi reticle
