InfiRay RICO HYBRID 384 3X 50mm 90 Hz HYL50W Multi-function Thermal Weapon Sight
InfiRay RICO HYBRID 384 3X 50mm 90 Hz Multi-function Thermal Weapon Sight.
First introduced as the powerful combination of a thermal weapon sight and a thermal clip-on unit, the HYBRID line-up continues to evolve with specialized models, top-performing sensors, and an advanced feature set designed for technical shooters.

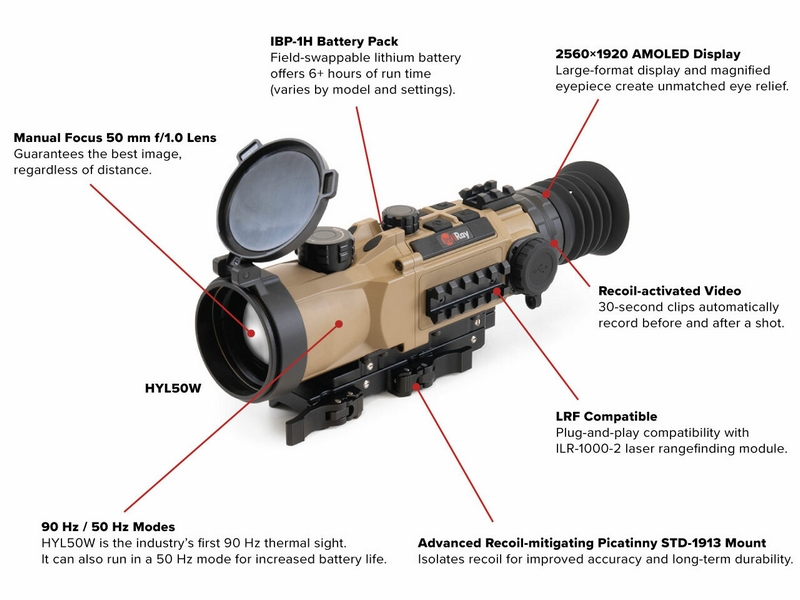

The combination of the HYBRID’s low-distortion orthoscopic eyepiece and a 1.03-inch large-format 2560×1920 display provides comfortable viewing, a sharp image, and massive eye relief. The HYBRID also unlocks advanced features such as compatibility with a 1,000 yard laser rangefinder, a custom ballistic reticle generator, wireless remote, and an onboard ballistic solver.
This year, the HYBRID family expands with the addition of the 50 mm 90 Hz model (HYL50W), optimized for smooth motion and fast moving targets.
All models in the HYBRID series can be used as a clip-on thermal in front of a day scope (with magnification up
to 10x). Additionally, all HYBRID models are compatible with the ILR-1000-2 Laser Rangefinder, which provides
real-time ranging data on the display and can even dial a firing solution o based on user-suppied drop values.
Sensor Pixel Size: | 17μm |
Objective Focal Length: | 50mm |
Digital Magnification: | 8x |
Objective F#: | 1.0 |
Objective Diameter: | 50mm |
Sensor Frame Rate: | 50hz / 90hz |
Detection Range: | 2000 Yards |
Optical Magnification: | 3x |
Device Technology: | Thermal Imaging |
Onboard Recording: | Yes |
Sensor Resolution: | 384×288 |
A faster refresh rate means smoother motion and a more life-like viewing experiece. This is especially important when shooting at fast moving targets. The industry has progressed from 9 Hz, to 25, 50, now 60 Hz;
InfiRay is proud to introduce the first 90 Hz thermal weapon sight to the market.
Optics
Display Type: AMOLED
Eye Relief: 60mm
Objective Focal Length: 50mm
Digital Magnification: 8x
Diopter Range: -4 to +2
Vertical Angular Field of View: 5.6°
Horizontal Angular Field of View: 7.5°
Focusing Mechanism: Manual Focus
Objective F#: 1.0
Objective Diameter: 50mm
Objective Lens Material: Germanium
Display Resolution: 2560x1920
Detection Range: 2000 Yards
Optical Magnification: 3x
Environmental Specifications
Operating Temperature Range: -4°F~122°F
Recoil Rating: 1000 g/s² (300 Win./7mm Mag)
Ingress Protection: IP67
Sensor Specifications
Sensor Type: InfiRay MICRO II
Sensor Pixel Size: 17μm
Thermal Sensitivity: <25mk
Non-Uniformity Correction (NUC): Manual, Automatic, Semi-Automatic
Sensor Frame Rate: 50hz / 90hz
Device Technology: Thermal Imaging
Sensor Resolution: 384×288
Physical
Mounting Interface: Picatinny MIL-STD 1913 Rail
Housing Material: Magnesium Alloy
Weight: 30.01 Oz.
Height: 2.99 Lbs
Width: 3.03"
Length: 11.02"
Features & Performance
Warranty: 5 Years with 5 days turnaround time by IrayUSA
Startup Time: <10 Seconds, Instant from Standby

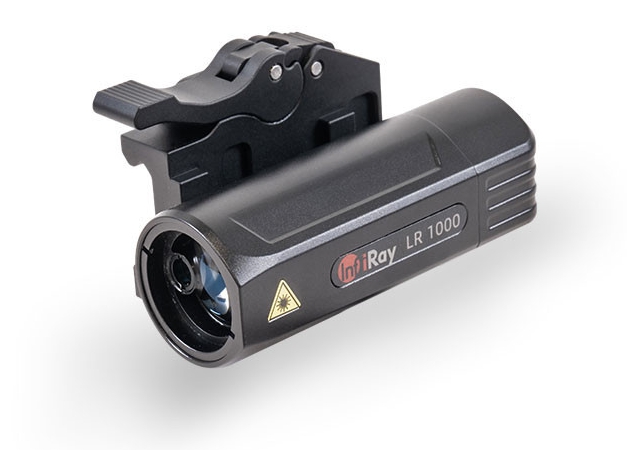

Rangefinder: ILR-1000-2 LRF (Optional/Not Included)
Color Palettes: White Hot, Black Hot, Red Hot, Iron Red, Rainbow, Outline
Picture-in-Picture: Yes
Storage Capacity: 64GB
Connector Output: Power/Data
User-Updatable Firmware: Yes
Mobile App: Yes
Run Time: 6+ hours
Power Source: USB-C External, IBP-1H Li-ion Battery Pack
Stand-by Mode: Yes
Reticle: 9 (7 Static, 1 DIY, 1 BDC)
Connector Type: USB-C
External Power Source: USB-C
Country of Manufacture: China
Wifi: Yes
Onboard Recording: Yes
Image Capture: Yes
Manufacturer | Infiray Outdoor |
---|---|
SKU | HYL50W |
GTIN (UPC / EAN) | 850048751255 |
Weight (grams) | 1350 |
Country of manufacture | China |
Minimum magnification | 3.00 x |
Maximum magnification | 24.00 x |
Front lens diameter | 50mm |
total length (cm) | 28.00 cm |
Productgroup | Thermal imaging scopes, Riflescopes |
Manufacturer warranty | 5 years |
Color | FDE (Flat Dark Earth) |
Reticle | Multi reticle |
