InfiRay RICO HD RS75 1280x1024 px 2X 75mm Thermal Weapon Sight
InfiRay RICO HD RS 75 1280x1024 px 2X 75mm Thermal Rifle Scope.
The Rugged Infrared Compact Optic (RICO) HD RS75 is the first commercially available 1280x1024 resolution thermal weapon sight ever created.
You read that right, the legendary thermal image quality produced by a High Definition(1280x1024) thermal sensor is finally commercially available to night hunters in the form of an advanced weapon sight. The RICO HD RS75 has an incredible 1,310,720 pixels processed by InfiRay’s proprietary MATRIX III algorithm to create an image so clear, it is almost unbelievable.
It’s been more than a decade since the leap from 320x240 resolution to 640x512 resolution thermal sensor technology, but the inexorable advancement to 1280x1024 resolution has been approaching quietly in the background. As night hunters we have always wanted more performance out of our optics, but the problem was we couldn’t do that with existing technology which had reached its limits. Through years of research and development by an engineering team of over 500 devoted to sensor innovation, InfiRay Outdoor has unleashed the capabilities that night hunters have only dreamed of.

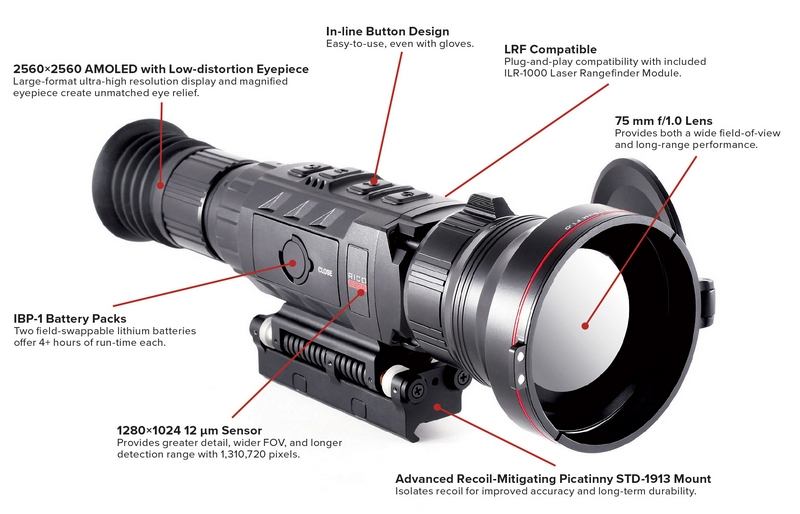

The RS75 maintains many familiar RICO Mk1 characteristics including a 4 button layout, similar software style and menu functions, and high speed germanium objective optics. In addition to the tried and true features of the MK1 line, InfiRay Outdoor added several highly requested features to the RS75 including 128gb of internal storage space, an upgraded 2560x2560 AMOLED display, an enhanced microphone, and a recoil mitigating mount for increased durability.
CRYSTAL CLEAR AUDIO AND VIDEO
The RICO HD offers crystal clear onboard audio recording to compliment captured videos. Increased audio clarity over previous RICO generations allows you to capture a quiet whisper before the shot or the report of a bullet impact hundreds of yards away.
PREMIUM OPTICS AND NEAR-EYE DISPLAY
One of the first things you notice when you look through the RICO HD RS75 is the optical clarity. The eyepiece offers edge to edge image perfection when paired with the 1.03" 2560x2560 AMOLED microdisplay. The RS75's orthoscopic eyepiece has also been redesigned with premium components specifically selected to achieve low distortion and edge to edge clarity. This redesigned eyepiece offers a more forgiving eyebox for a more comfortable cheek weld and 60mm of eye relief.
UNLOCKED NEXT GENERATION CAPABILITIES
What does it take to unlock the next level of thermal imaging? Four times the resolution of 640 devices, 1,310,720 pixels, a 12 degree horizontal field of view, and a detection range of 3,600 yards make the RICO HD the ultimate thermal weapon sight for any distance. No longer do night hunters have to sacrifice detection range or field of view, you can have it all in one scope for close range, mid range, or longer range shots.
To get the most out of the first 1280x1024 resolution weapon sight, InfiRay Outdoor built in a suite of best-in-class features including a rail mounted laser rangefinder and compatibility with a custom reticle generator app. Never before has a weapon sight enabled the skilled shooter to be as accurate at night as they are in daylight conditions, until now!
Device Technology: | Thermal Imaging |
Sensor Resolution: | 1280×1024 |
Sensor Frame Rate: | 30hz |
Sensor Pixel Size: | 12 micron |
Optical Magnification: | 2X |
Digital Magnification: | 16X |
Detection Range: | 3600 Yards |
Objective Focal Length: | 75mm |
Objective Diameter: | 75mm |
Objective F#: | f/1.0 |
Onboard Recording: | Video and Image |
Optics
Optical Magnification: 2x
Digital Magnification: 16x
Objective Lens Material: Germanium
Horizontal Angular Field of View: 11.7°
Vertical Angular Field of View: 9.4°
Detection Range: 3600 Yards
Objective Focal Length: 75mm
Objective Diameter: 75mm
Objective F#: f/1.0
Focusing Mechanism: Manual Focus
Exit Pupil: 14mm
Eye Relief: 60mm
Eyepiece Focal Length: 27 mm
Display Type: AMOLED
Diopter Range: -3 - +3
Display Resolution: 2560×2560
Environmental Specifications
Operating Temperature Range: -4°F~122°F
Recoil Rating: 1000 g/s² (300 Win./7mm Mag)
Ingress Protection: IP67
Sensor Specifications
Device Technology: Thermal Imaging
Sensor Type: InfiRay MICRO II
Sensor Resolution: 1280×1024
Non-Uniformity Correction (NUC): Manual, Automatic, Semi-Automatic
Spectral Response: 8-12 Microns
Sensor Frame Rate: 30hz
Sensor Pixel Size: 12 micron
Thermal Sensitivity: <25 mk
Physical
Mounting Interface: Picatinny STD-1913 rail
Housing Material: Aluminum
Length: 12.55"
Weight: 44.9 Oz
Height: 3.34"
Width: 3.93"
Features & Performance
Reticles: 7 (2 Dynamic, 5 Static)
Connector Type: USB-C
Color Palettes: White Hot, Black Hot, Red Hot, Color, Highlight
User-Updatable Firmware: Yes
Mobile App: Yes
Storage Capacity: 128GB
Connector Output: Power/Data
Picture-in-Picture: Yes
One-Shot Zero: Yes
Stand-by Mode: Yes
Rangefinder: ILR-1000 LRF (Included)
Run Time: 4+, Each Battery
Power Source: IBP-1 Battery Pack x 2, 4+ Hours Each
Wifi: Yes
Onboard Recording: Video and Image
Image Capture: Yes
Video Output: Yes
Startup Time: Under 10 Seconds
External Power Source: USB-C
Warranty: 5 Years
Compatible With: ILR-1000
Country of Manufacture: China
Manufacturer | Infiray Outdoor |
---|---|
SKU | RS75 |
GTIN (UPC / EAN) | 850029093886 |
Weight (grams) | 1272 |
Country of manufacture | China |
Minimum magnification | 2.00 x |
Maximum magnification | 32.00 x |
Front lens diameter | 75mm |
total length (cm) | 31.90 cm |
Productgroup | Thermal imaging scopes, Riflescopes |
Manufacturer warranty | 5 years |
Color | black |
Reticle | Multi reticle |
