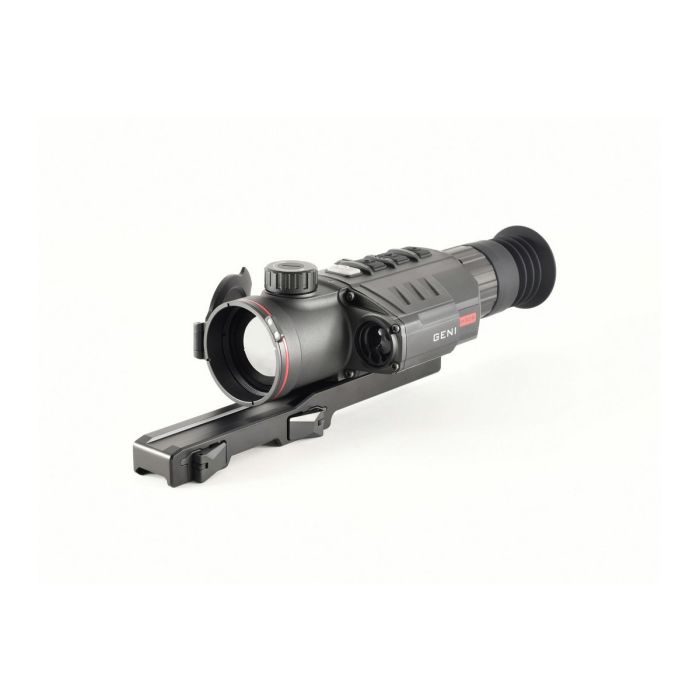

InfiRay RICO G-LRF 640 3x 50mm GH50R Thermal Weapon Sight
InfiRay RICO G-LRF 640 3x 50mm, 50 hz GH50 R Thermal Rifle Scope with built in Laser Range Finder.

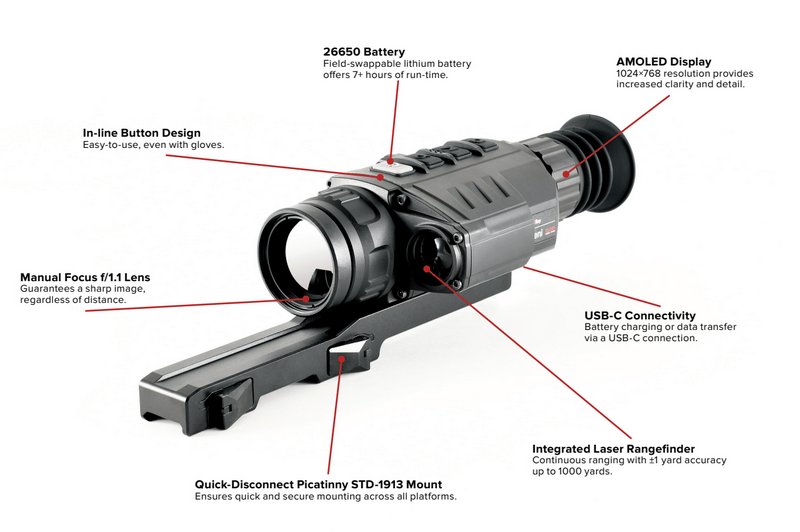

The InfiRay Outdoor RICO G-LRF Series introduces the next generation of thermal functionality,seamlessly combining InfiRay’s industry-leading 12 μm detector technology and a precision laserrange-finding module in a single unit. The RICO G-LRF Series features a 1024×768 AMOLED display toguarantee a crisp, high-contrast image, while the precision laser range-finding module ensures accurate measurement to 1000 yards.
Additional features include image and video capture with 32GB of storage,wireless streaming, and a field-swappable 26650 battery with a 7-hour run-time.
| Sensor Pixel Size: | 12μm |
| Sensor Frame Rate: | 50hz |
| Detection Range: | 2400 Yards |
| Optical Magnification: | 3x |
| Device Technology: | Thermal Imaging |
| Sensor Resolution: | 640×512 |
| Objective Focal Length: | 50mm |
| Digital Magnification: | 4x, stepped |
| Onboard Recording: | Yes |
| Objective F#: | 1.1 |
| Objective Diameter: | 50mm |
Optics
Detection Range: 2400 Yards
Optical Magnification: 3x
Objective Focal Length: 50mm
Objective Lens Material: Germanium
Digital Magnification: 4x, stepped
Focusing Mechanism: Manual Focus
Display Type: AMOLED
Vertical Angular Field of View: 6.6°
Horizontal Angular Field of View: 8.8°
Objective F#: 1.1
Objective Diameter: 50mm
Eye Relief: 48mm
Diopter Range: -4 - +4
Display Resolution: 1024×768
Environmental Specifications
Recoil Rating: 1000 g/s² (300 Win./7mm Mag)
Operating Temperature Range: -4°F~122°F
Ingress Protection: IP67
Sensor Specifications
Sensor Type: InfiRay MICRO II
Sensor Pixel Size: 12μm
Thermal Sensitivity: <50mk
Non-Uniformity Correction (NUC): Manual, Automatic, Semi-Automatic
Spectral Response: 8-12 Microns
Sensor Frame Rate: 50hz
Device Technology: Thermal Imaging
Sensor Resolution: 640×512
Physical
Mounting Interface: Picatinny STD-1913 rail
Length: 8.85 in
Width: 3.93 in
Height: 2.42 in
Weight: 25.71 oz
Housing Material: Polymer
Features & Performance
Wifi: Yes
Image Capture: Yes
Mobile App: Yes
Connector Type: USB-C
Video Output: Analog RS-170/NTSC
Connector Output: Power/Data
Onboard Recording: Yes
Warranty: 5 Years
Power Source: 26650 Battery
Color Palettes: White Hot, Black Hot, Red Hot, Color, Highlight
Rangefinder: Internal Laser Range Finder, up to 1000 yards
Picture-in-Picture: Yes
User-Updatable Firmware: Yes
Storage Capacity: 32GB
Startup Time: Under 10 Seconds
Run Time: 7 hours
One-Shot Zero: Yes
Stand-by Mode: Yes
Reticle: 7 (2 Dynamic, 5 Static)
External Power Source: USB-C
| Manufacturer | Infiray Outdoor |
|---|---|
| SKU | GH50R |
| GTIN (UPC / EAN) | 850029093725 |
| Weight (grams) | 729 |
| Country of manufacture | China |
| Minimum magnification | 3.00 x |
| Maximum magnification | 12.00 x |
| Front lens diameter | 50mm |
| total length (cm) | 22.50 cm |
| Material | Polymer |
| Productgroup | Thermal imaging scopes, Riflescopes |
| Manufacturer warranty | 5 years |
| Color | black |
| Reticle | Multi reticle |
