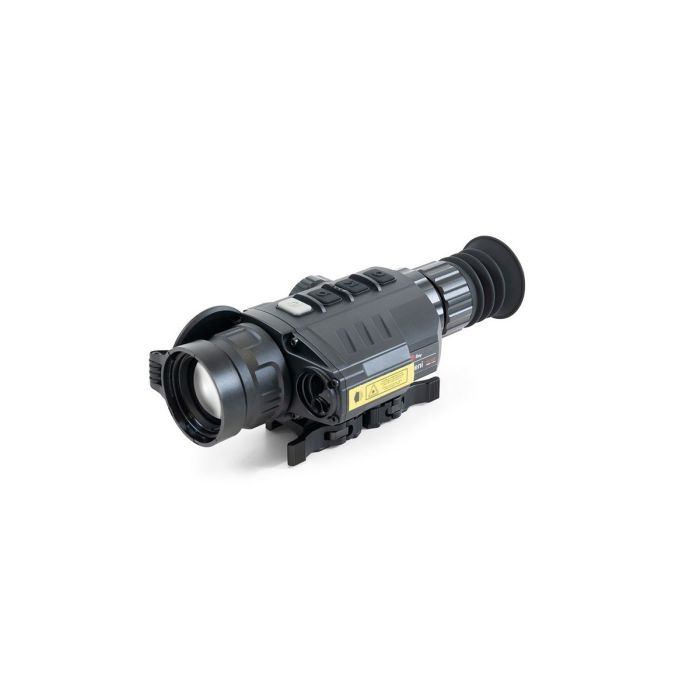

InfiRay RICO G-LRF 384 GL35R 35mm LRF Thermal Weapon Sight
InfiRay Outdoor RICO Geni LRF GL35 R 384 35mm Laser Rangefinding Thermal Rifle scope.
The RICO G-LRF is the first addition to InfiRay Outdoor’s family of Rugged Infrared Compact Optics(RICO) to include an integrated laser rangefinder. Designed as a more compact and affordable alternative to it’s full size RICO Mk1 counterpart, the RICO G-LRF has a thermal sensor of 384x288 with a 35mm Germanium (Ge) front lens.
Although smaller in size, the RICO G-LRF still maintains many familiar RICO Mk1 characteristics including a 4 button layout, compatibility with the AD-RQD quick release mount, similar software style and menu functions, high speed germanium objective optics, and an HD OLED display. In addition to the features it carries over from the Mk1, the G-LRF brings never-before-seen features to market for InfiRay Outdoor including a new high density 26650 battery configuration, and InfiRay Outdoor’s newly integrated high performance 905nm LRF micro-module. This advanced class 3R LRF module uses the latest technology in laser ranging to decrease physical laser input receiver size while maintaining accuracy and range capabilities of modules that are much larger, heavier, and more power hungry.
Other notable design characteristics to achieve the desired smaller stature are a smaller chassis, shorter eyepiece focal length, barrel-style manual focus objective optics, and a high density battery configuration. All these features combined make the RICO G-LRF an excellent option for hunters that need no more than 7 hours per battery swap and require decreased size and a integrated rangefinder.
The RICO G-Series LRF seamlessly blends InfiRay Outdoor’s industry-leading 12μm detector technology, a built-in laser range-finding module and an intuitive user interface in a single product. The G-Series LRF also supports image and video capture, wireless data transmission, electronic compass, multiple reticles and a 7 hour run-time, guaranteeing it’s never been easier to detect, range, and connect on your next hunt.
Sensor Resolution: | 384×288 |
Sensor Pixel Size: | 12μm |
Objective Focal Length: | 35mm f/1.1 |
Sensor Frame Rate: | 50Hz |
Onboard Recording: | Video and Image |
Digital Magnification: | 4x |
Optical Magnification: | 3x |
Device Technology: | Thermal Imaging |
Detection Range: | 1750 Yards |
Objective Diameter: | 35mm |
Objective F#: | 1.0 |
Optics
Objective Focal Length: 35mm f/1.1
Display Type: OLED
Eye Relief: 40mm
Digital Magnification: 4x
Optical Magnification: 3x
Detection Range: 1750 Yards
Objective Lens Material: Germanium
Horizontal Angular Field of View: 7.5°
Vertical Angular Field of View: 5.7°
Objective Diameter: 35mm
Objective F#: 1.0
Focusing Mechanism: Manual Focus
Diopter Range: -4 - +4
Display Resolution: 1024 × 768
Environmental Specifications
Recoil Rating: 1000 g/s² (300 Win./7mm Mag)
Ingress Protection: IP67
Operating Temperature Range: -4°F to 122°F
Sensor Specifications
Sensor Resolution: 384×288
Sensor Type: InfiRay MICRO II
Sensor Pixel Size: 12μm
Thermal Sensitivity: <40mK
Non-Uniformity Correction (NUC): Manual, Automatic, Semi-Automatic
Spectral Response: 8-12 Microns
Sensor Frame Rate: 50Hz
Device Technology: Thermal Imaging
Physical
Housing Material: Polymer
Length: 8.85 in
Width: 3.93 in
Height: 2.42 in
Weight: 23.9 Oz
Mounting Interface: Picatinny STD-1913 rail
Features & Performance
Onboard Recording: Video and Image
Warranty: 5 Years
Rangefinder: Internal LRF
Picture-in-Picture: Yes
Reticle: 8
Color Palettes: 4
Stand-by Mode: Yes
One-Shot Zero: Yes
User-Updatable Firmware: Yes
Mobile App: Yes
Wifi: Yes
Image Capture: Yes
Connector Type: USB-C
Storage Capacity: 32gb
Power Source: 26650 Battery
Run Time: 7
External Power Source: USB-C
Startup Time: Under 10 Seconds
Manufacturer | Infiray Outdoor |
---|---|
SKU | GL35R |
GTIN (UPC / EAN) | 850029093879 |
Weight (grams) | 677 |
Country of manufacture | China |
Minimum magnification | 3.00 x |
Maximum magnification | 12.00 x |
Front lens diameter | 35mm |
total length (cm) | 22.50 cm |
Productgroup | Thermal imaging scopes, Riflescopes |
Manufacturer warranty | 5 years |
Color | black |
Reticle | Multi reticle |
