InfiRay Outdoor BOLT TX60C Thermal Weapon Sight 1024x1024 60mm

InfiRay Outdoor BOLT TX60C Thermal Weapon Sight 1024x1024 60mm.

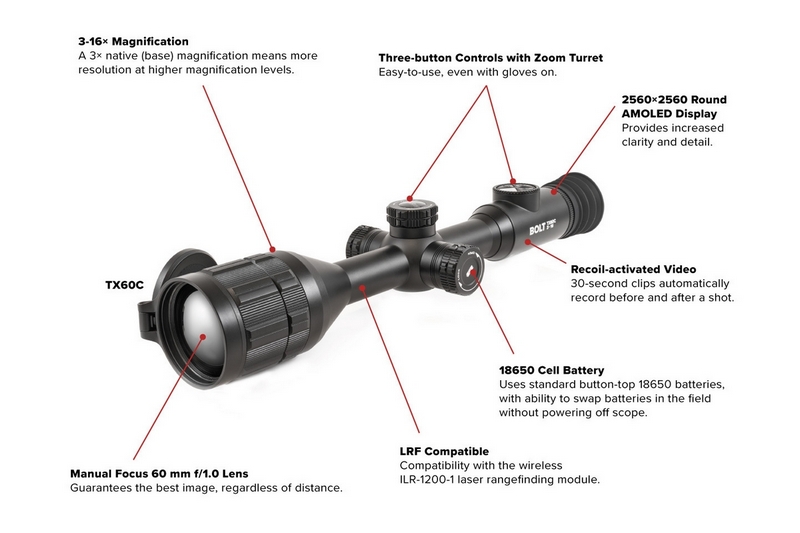

The BOLT TX60C provides hunters with a high-resolution 1024×1024 InfiRay Micro II thermal sensor at a native 3× magnification and digital zoom up to 16×, ideal for predator hunting and longer-range shots.

Increased resolution paired with a higher base magnification means less resolution is lost at higher zoom levels.

A fast f/1.0 germanium objective lens, a sensitivity rating of ≤18mK, and a round 2560×2560 AMOLED display provide exceptional detail and precision.

The round 30mm body design allows for easy mounting with the included one-piece cantilever mount or standard scope rings.

Wirelessly paired with the ILR-1200-1 Laser Rangefinding module, the TX60C is capable of displaying real-time ranges on-screen and even calculating a firing solution using customizable projectile data and the onboard ballistic calculator.

Main features
Device Technology: Thermal Imaging
Objective Focal Length: 60mm
Sensor Resolution: 1024x1024
Detection Range: 2700 Yards
Sensor Pixel Size: 12μm
Sensor Frame Rate: 50hz
Optical Magnification: 3X
Digital Magnification: 4X, stepped
Objective Diameter: 60mm
Objective F#: 1.0
Onboard Recording: Yes

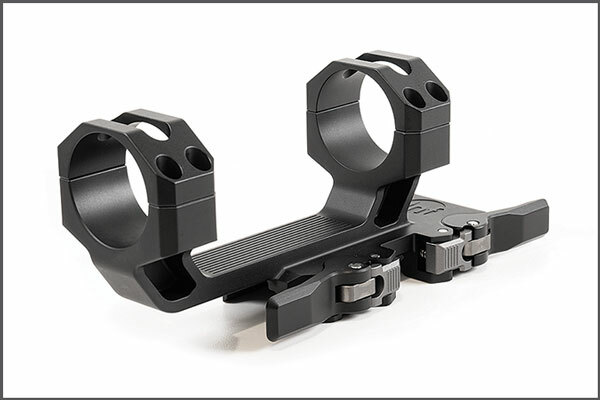

The TX60C comes with a 30 mm one-piece quick-detach scope mount with dual-locking levers (AC112) to mount the scope on any rifle with a Picatinny rail. The QD design makes it easy to swap out your thermal optic with a day scope, or share one thermal on multiple rifles.

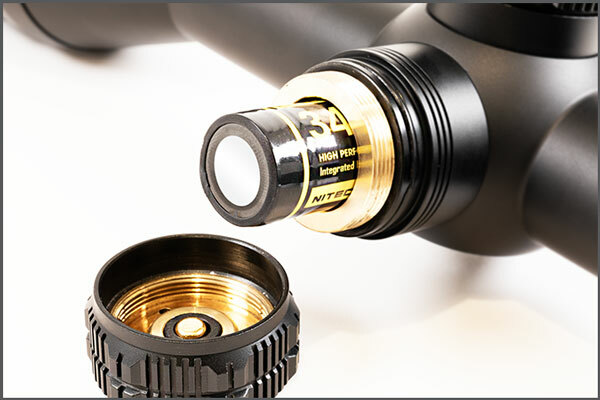

As an evolution from previous BOLT series models, the TX60C can now directly accept common 18650 cell batteries (button-top version) without an extension/adapter.

Optics
Objective Focal Length: 60mm
Detection Range: 2700 Yards
Optical Magnification: 3x
Digital Magnification: 4x, stepped
Horizontal Angular Field of View: 11.7°
Objective Lens Material: Germanium
Vertical Angular Field of View: 11.7°
Objective Diameter: 60mm
Objective F#: 1.0
Focusing Mechanism: Manual Focus
Eye Relief: 50mm
Diopter Range: -5 - +3.5
Display Type: AMOLED
Display Resolution: 2560×2560

Environmental Specifications
Operating Temperature Range: -4°F~122°F
Ingress Protection: IP67
Recoil Rating: 1000 g/s² (300 Win./7mm Mag)

Sensor Specifications
Device Technology: Thermal Imaging
Sensor Type: InfiRay MICRO II
Sensor Resolution: 1024x1024
Sensor Pixel Size: 12μm
Sensor Frame Rate: 50hz
Thermal Sensitivity: <18mk
Non-Uniformity Correction (NUC): Manual, Automatic, Semi-Automatic

Physical
Length: 15.12
Weight: 35.27 Oz
Height: 3.03
Width: 4.09
Mounting Interface: Picatinny MIL-STD 1913 Rail
Housing Material: Aluminum T-6061

Features & Performance
Reticle: 7 (1 Dynamic, 5 Static, 1 DIY)
Color Palettes: White Hot, Black Hot, Red Hot, Color, Violet, Crimson, Viridian
Rangefinder: Bluetooth ILR-1200-1 LRF (Optional)
Stand-by Mode: Yes
Picture-in-Picture: Yes
Image Capture: Yes
Wifi: Yes
Mobile App: Yes
User-Updatable Firmware: Yes
Connector Type: USB-C
Connector Output: Power/Data
Storage Capacity: 128GB
Onboard Recording: Yes
Power Source: USB-C External, 18650 Battery
Run Time: 8+
External Power Source: USB-C
Warranty: 5 Years
Startup Time: <10 Seconds, Instant from Standby
