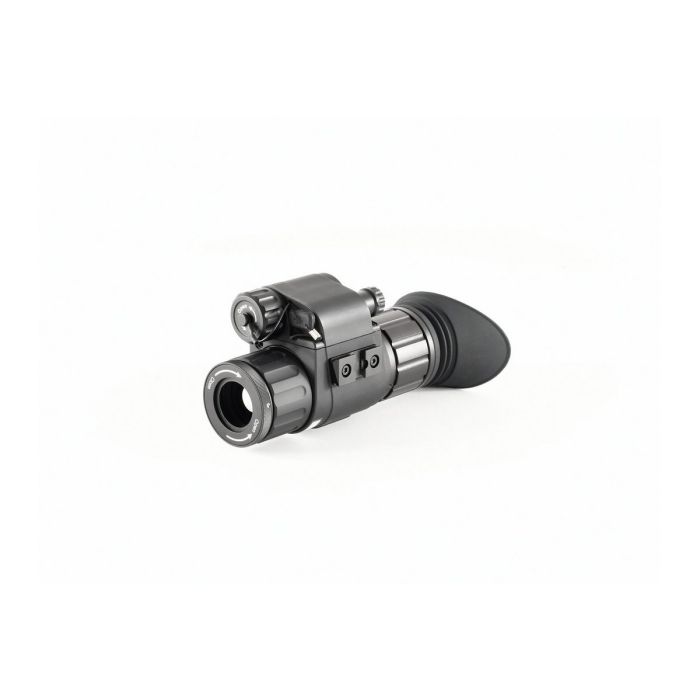

InfiRay MINI MH25 V2 640X512 25mm Thermal Monocular

InfiRay Outdoor MINI MH25 V2 640X512 25mm Thermal Monocular.

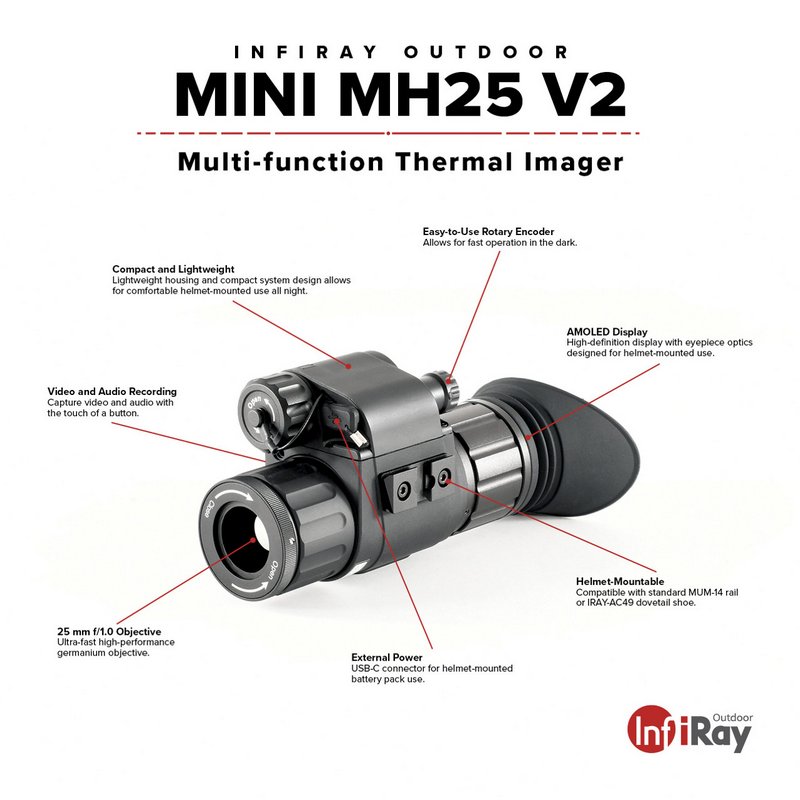

The InfiRay Outdoor MINI MH25 V2 is a compact, lightweight thermal optic designed for handheld or helmet-mounted use. Its unique design allows for seamless operation as a handheld monocular, and it can easily transition to a helmet mount for hands-free use.

The MH25 V2 is powered by a 50hz 12 μm sensor and features next-generation MATRIX III processing for an unmatched viewing experience. I addition to the features found on the original MH25, the MH25 V2 adds several highly requested features including an upgraded AMOLED display, an upgraded eyepiece, and onboard video and audio recording.

Flexible Mounting Options and Friendly Operation

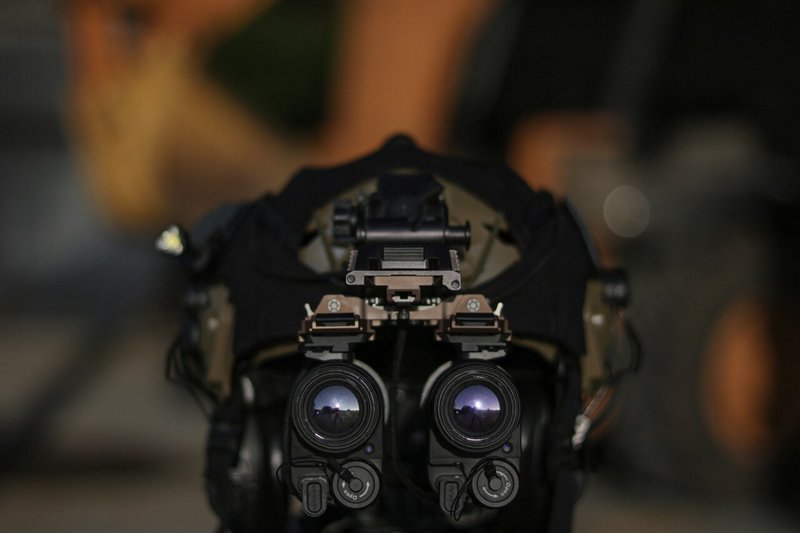

For hands-free operation there are 2 mounting points designed to allow for a wide variety of dovetail helmet mounts. The Mini's display icons flip automatically when orientation is flipped.

The MH25 is operated by an intuitive clearly labeled menu and user friendly rotary button. This one button operation has positive clicks with each selection and allows for quick and easy operation without having to search for any buttons in the dark.

Power Supply Options
The Mini is compatible with CR123A, CR123, 16340, and 16650 batteries. Using 1 x 16650 the Mini will run for 3 hours, and using the included power cable with a 10,000 mah USB battery the Mini will run for 18 hours. DO NOT USE 2 x CR123A batteries with the 16650 adapter, it will permanently disable your device.

About InfiRay Sensors
IRAY technology has been developing and producing infrared FPA detectors, thermal cores, and other thermal products outside of the US for more than a decade. IRay has completely independent intellectual property rights and is committed to providing professional thermal imaging solutions across the globe. More than 50% of IRay's employees are R&D engineers and IRay has been awarded 219 technical patents.

Optics
Optical Magnification: 1x
Digital Magnification: 4x, stepped
Objective Focal Length: 25mm
Objective Diameter: 25mm
Objective F#: 1.0
Objective Focusing Range: 2 meters to infinity
Horizontal Angular Field of View: 17.5
Vertical Angular Field of View: 13.1
Detection Range: 1375 Yards
Eyepiece Focal Length: 27mm
Eye Relief: 20mm
Exit Pupil: 14mm
Diopter Range: -4 - +3
Display Type: AMOLED
Objective Lens Material: Germanium
Focusing Mechanism: Manual Focus
Display Resolution: 1280×960

Environmental Specifications
Ingress Protection: IP67
Recoil Rating: None
Operating Temperature Range: -4°F~122°F

Sensor Specifications
Device Technology: Thermal Imaging
Sensor Resolution: 640×512
Sensor Pixel Size: 12μm
Sensor Frame Rate: 50hz
Thermal Sensitivity: <50mk
Spectral Response: 8-12 Microns
Sensor Type: InfiRay MICRO II
Non-Uniformity Correction (NUC): Manual, Automatic, Semi-Automatic
