InfiRay M6T 25mm Thermal Vehicle Mounted Camera with LRF 640x512

$6,999.00
2 in stock, delivery time 3-6 working days2 in stock, delivery time 3-6 working days
  • High quality product
  • Fast shipping
  • No sales tax outside of Texas

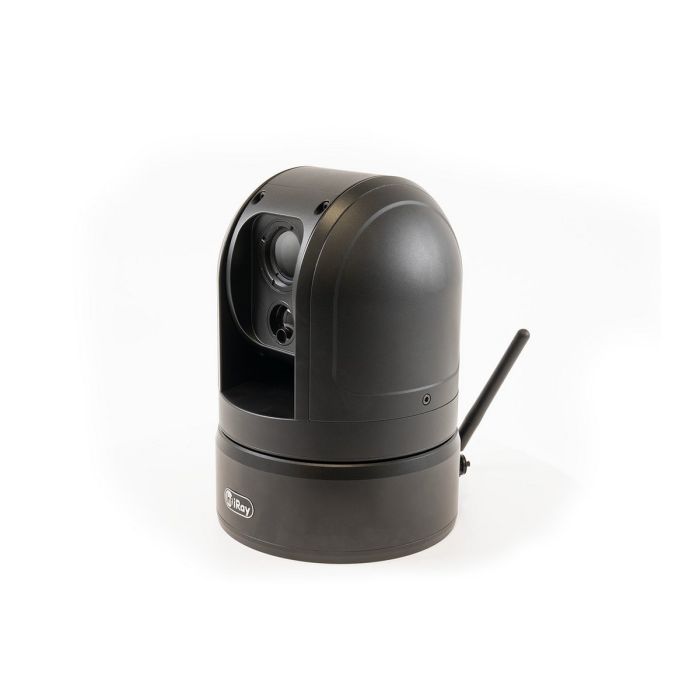

InfiRay M6T 25mm Thermal Vehicle Mounted Pan-Tilt-Zoom Camera with Laser Range Finder 640x512 12 Micron 25mm.

The M6 Series is a vehicle mounted Dome PTZ thermal camera system developed for outdoor hunting, search, and rescue. It can rapidly be installed on the roof of your car or ATV by a pressurized suction cup or securely mounted on a rack.

The M6 thermal PTZ camera system is designed to enhance scanning capabilities while on-board a vehicle and is over-built to maintain performance through years of use and exposure to the elements. Our mission is simple—to create the highest quality thermal PTZ systems available for night hunters. The M6 is packed full of useful features including video recording, gyro stabilization, and mobile app connectivity with wireless streaming. The new M6 is includes an integrated laser pointer and laser rangefinder for increased situational awareness. The M6 kit has everything you need to add thermal to any vehicle including power and signal wiring harnesses and an easy-to-use wired thumbstick controller. In just a few minutes you can upgrade any vehicle with powerful thermal imaging technology.

An included wired remote with a thumb-actuated joystick provides smooth and precise pan and tilt control of the M6 unit. Position can also be controlled through the mobile app.

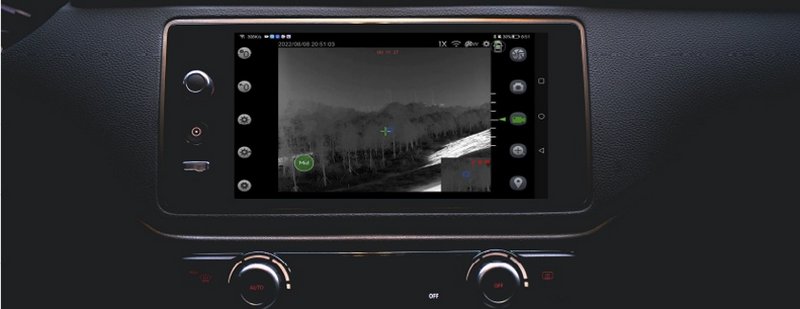

InfiRay iRayUSA M6T25 PTZ connectivity to your car

The IP56 Rating makes it suitable for extreme weather. It has a wide operating temperature range between -4~140°F (-20~60℃) so it can suit any conditions.

IP56 stands for:
- Dust protection level 5: Ingress of dust is not entirely prevented, but it must not enter in sufficient quantity to interfere with the satisfactory operation of the equipment.
- Moist protection level 6: Water projected in powerful jets (12.5 mm nozzle) against the object from any direction shall have no harmful effects.

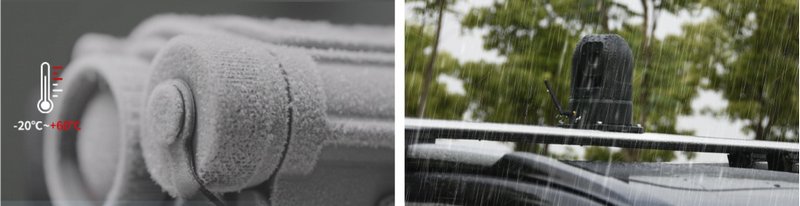

InfiRay IrayUSA Dome Vehicle camera weather protection

Device Technology: Thermal Imaging
Objective Focal Length: 25mm
Sensor Resolution: 640x512
Detection Range: 1375 Yards
Sensor Pixel Size: 12μm
Sensor Frame Rate: 50hz
Digital Magnification: 4X
Optical Magnification: 1X
Objective Diameter: 25mm
Objective F#: 1.0
Onboard Recording: Yes

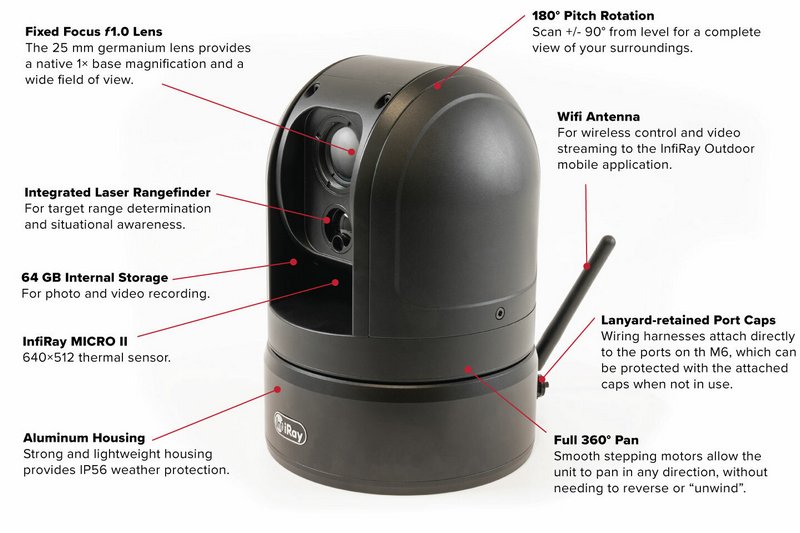

InfiRay Dome M6T25 product features

Optics
Objective Focal Length: 25mm
Detection Range: 1375 Yards
Digital Magnification: 4x
Optical Magnification: 1x
Objective Lens Material: Germanium
Objective Diameter: 25mm
Objective F#: 1.0

Environmental Specifications
Ingress Protection: IP56

Sensor Specifications
Device Technology: Thermal Imaging
Sensor Type: InfiRay MICRO II
Sensor Resolution: 640x512
Sensor Pixel Size: 12μm
Sensor Frame Rate: 50hz
Thermal Sensitivity: <50mk

Physical
Weight: 70.5 Oz.
Housing Material: Aluminum

Features & Performance
Wifi: Yes
Mobile App: Yes
User-Updatable Firmware: Yes
Onboard Recording: Yes
External Power Source: DC 12V

Manufacturer Infiray Outdoor
SKU M6T25
GTIN (UPC / EAN) 850048751156
Weight (grams) 2000
Country of manufacture China
Minimum magnification 1.00 x
Maximum magnification 4.00 x
Front lens diameter 25mm
Material Aluminium
Productgroup Cameras, Thermal imaging monoculars
Manufacturer warranty 5 years
Color black
