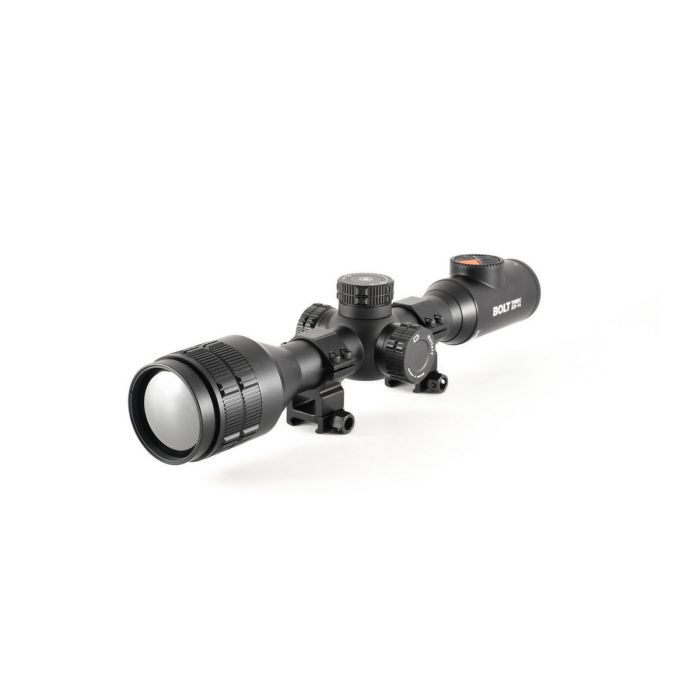

InfiRay BOLT TH50C V2 Thermal Weapon Sight 640x512 50mm

$3,999.00 $5,495.00
2 in stock, delivery time 3-6 working days2 in stock, delivery time 3-6 working days
  • High quality product
  • Fast shipping
  • No sales tax outside of Texas


InfiRay Outdoor BOLT TH50CV2 Thermal Rifle Scope 640x512 50mm.

Now at a strongly reduced price, as long as supplies last!

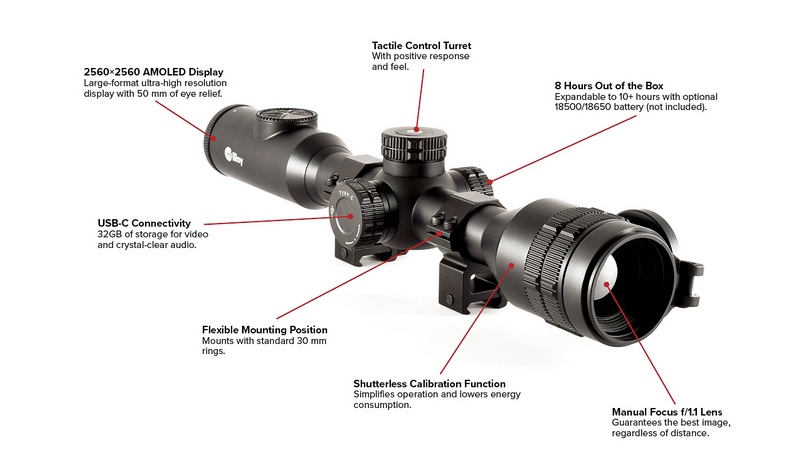

The iRay USA BOLT TH50C V2 expands on the success of the TH50C with the addition of improved audio recording and an optional Bluetooth laser rangefinder module. InfiRay’s industry-leading 12 μm 640×512 Micro II sensor, 1.03-inch large-format 2560×2560 resolution display, and Shutterless Calibration feature are now more powerful than ever, while still maintaining the proven combination of a manual focus lens, dual battery design, and tactile control turret.

The BOLT TH50C V2’s traditional look and flexibility of a 30 mm ring mounting interface also guarantee the perfect fit on your favorite hunting rifle.

iRayUSA Bolt TH50CV2 Thermal riflescope

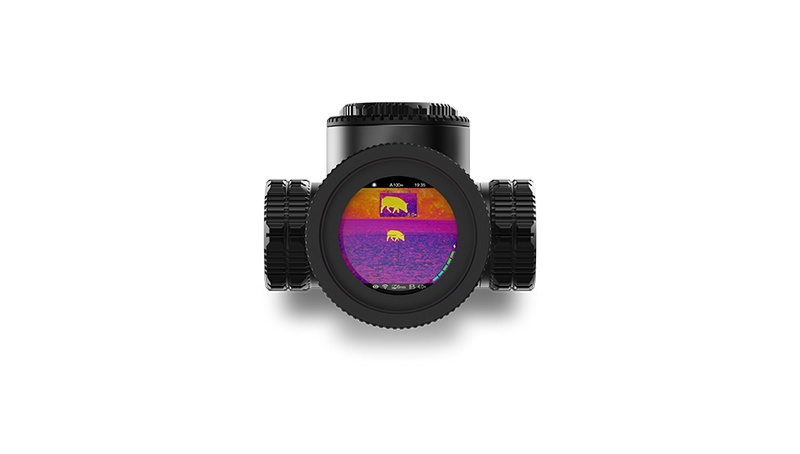

The BOLT TH50-C V2 features a one-of-a-kind circular 2560x2560 AMOLED display for a more traditional rifle scope look and feel. Inside of a TH50-C V2, the image from an InfiRay 50Hz 12 micron Micro II core is displayed on a crystal clear 2560x2560 ULTRA HD 1.03in display. These components and InfiRay’s proprietary MATRIX III algorithm create an image technically and visually superior to optics with similar specifications. Dual internal 18650 batteries and an optional auxiliary battery provide 10+ hours of run time. The TH50-C V2 also comes standard with 16 Gb of internal memory for hours of video capture.

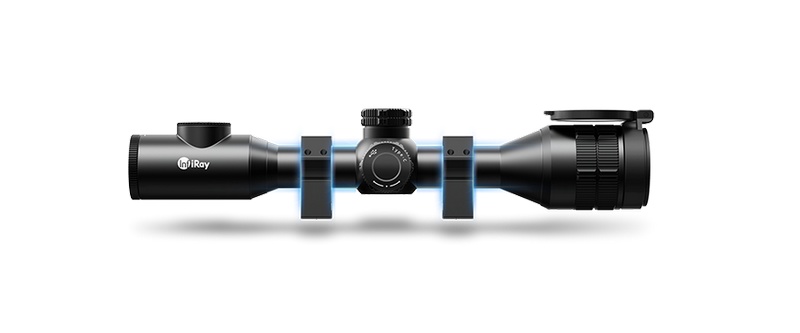

The BOLT-C Series was designed from the ground up for optimal use on bolt action rifles and other platforms that demand flexible mounting options with increased eye relief. The traditional style of a BOLT housing allows for mounting with standard 30mm rings like a typical day scope.

OLD MEETS NEW

The BOLT features InfiRay Outdoor's innovative new way to control a thermal optic. Unlike other thermal optics with a turret style controller on one side, the BOLT has a large and easy to find metal turret controller on top. This makes operation easier in the dark and completely ambidextrous. The turret controller also has positive and tactile clicks when twisting, and a positive click when pressing in unlike any other thermal scope on the market. Both the aesthetics and the function of the BOLT demonstrate InfiRay Outdoor's mission to combined the traditional style and feel of a day optic and the advanced technology of thermal imaging.

HIGH PERFORMANCE

The TH50C V2 features the industry leading InfiRay 12 micron Micro II core with proprietary MATRIX III image processing, but that is just where the high performance begins. Along with the best sensor and software the TH50C V2 uses a set of optics specifically designed for a 12 micron sensor and a large-format 2560x2560 AMOLED HD display. Dual internal batteries power the BOLT for an incredible 10+ hours, and if you need more runtime the BOLT has an additional battery well for an off-the-shelf 18500 or 18650 battery. The BOLT also supports charging the internal batteries through a USB-C connector while in operation so you are never stuck with a dead battery.

ADVANCED TECHNOLOGY

The BOLT-C comes with 16gb of memory for storing 20,000 images or 24 hours of video. Captured videos and images can be easily transferred to your smartphone at lightning speed via app. The WiFi mode also allows for up to 4 connections to the BOLT-C simultaneously allowing multiple viewers to see the BOLT-C's thermal image in real time. Audio can also be recorded in the app via your smartphone microphone while connected to the app.

Optics
Objective Focal Length: 50mm
Detection Range: 2400 Yards
Display Type: AMOLED
Eye Relief: 50mm
Digital Magnification: 4x, stepped
Diopter Range: -5 - +3.5
Display Resolution: 2560×2560
Optical Magnification: 3.5x
Vertical Angular Field of View: 7°
Horizontal Angular Field of View: 8.8°
Focusing Mechanism: Manual Focus
Objective F#: 1.1
Objective Diameter: 50mm
Objective Lens Material: Germanium

Environmental Specifications
Recoil Rating: 1000 g/s² (300 Win./7mm Mag)
Ingress Protection: IP67
Operating Temperature Range: -4°F~122°F

Sensor Specifications
Sensor Resolution: 640×512
Sensor Type: InfiRay MICRO II
Sensor Pixel Size: 12μm
Thermal Sensitivity: <25mk
Non-Uniformity Correction (NUC): Manual, Automatic, Semi-Automatic
Spectral Response: 8-12 Microns
Sensor Frame Rate: 50hz
Device Technology: Thermal Imaging

Physical
Mounting Interface: 30mm Rings (included)
Housing Material: T-6061 Aluminum
Weight: 33.15 oz
Height: 2.95 in
Width: 3.34 in
Length: 14.5 in

Features & Performance
Onboard Recording: Yes
Warranty: 5 years
Rangefinder: Bluetooth ILR-1200-1 LRF (Optional)
Picture-in-Picture: Yes
Reticle: 7 (2 Dynamic, 5 Static)
Startup Time: Under 10 Seconds
Color Palettes: White Hot, Black Hot, Red Hot, Color, Highlight
Storage Capacity: 32GB
Connector Output: Power/Data
User-Updatable Firmware: Yes
Mobile App: Yes
Run Time: 8+
Power Source: Dual Power Supply (8+ Hours), 18500 Battery (2+ Hours), 18650 Battery (3.5+ Hours)
One-Shot Zero: Yes
Stand-by Mode: Yes
Connector Type: USB-C
External Power Source: USB-C or 18500/18650
Wifi: Yes
Image Capture: Yes
Video Output: Analog RS-170/NTSC



Manufacturer Infiray Outdoor
SKU TH50CV2
GTIN (UPC / EAN) 850048751019
Weight (grams) 940
Country of manufacture China
Minimum magnification 3.50 x
Maximum magnification 14.00 x
center tube diameter 30mm
Front lens diameter 50mm
total length (cm) 36.80 cm
Material Aluminium 6061-T6
Productgroup Thermal imaging scopes, Riflescopes
Manufacturer warranty 5 years
Color black
Reticle Multi reticle
