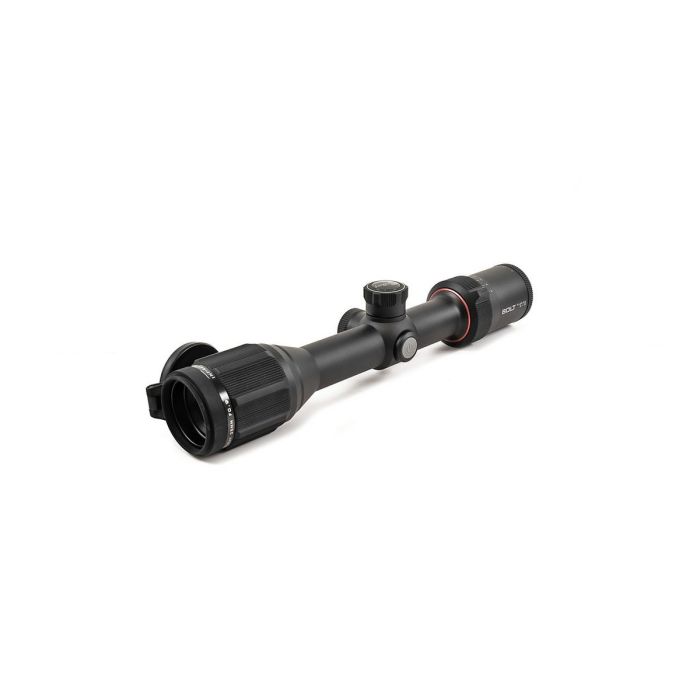

InfiRay BOLT TL25 SE Thermal Weapon Sight 384x288 25mm
InfiRay BOLT TL25 SE Thermal Rifle Scope 384x288 25mm.
The InfiRay Outdoor BOLT SE is built on the success of previous BOLT models with a focus on simplicity and ease of use. Designed with users of traditional rifle scopes in mind, the BOLT SE offers a familiar profile and tactile controls. InfiRay’s industry-leading 12 µm 384x288 Micro II sensor, paired with a 1536x1080 AMOLED display provides exceptional clarity across all zoom levels and is adjusted via an intuitive zoom ring.
Night hunters can appreciate the ability to use common mounting systems or the included 30mm Picatinny rings to mount on bolt-action rifles or other platforms. An internal battery with USB-C charging eliminates the need to change batteries in the field. Photo and video recording with 32GB of internal storage and mobile app connectivity with wireless streaming allows users to share their experiences with friends and family.
Optics
Objective Focal Length: 25mm
Detection Range: 1375 Yards
Display Type: AMOLED
Eye Relief: 50mm
Digital Magnification: 4x
Diopter Range: -5 - +4
Vertical Angular Field of View: 7.9°
Horizontal Angular Field of View: 10.5°
Focusing Mechanism: Manual Focus
Objective F#: 1.0
Objective Diameter: 25mm
Objective Lens Material: Germanium
Display Resolution: 1536×1080
Optical Magnification: 2x
Environmental Specifications
Operating Temperature Range: -4°F~122°F
Recoil Rating: 1000 g/s² (300 Win./7mm Mag)
Ingress Protection: IP67
Sensor Specifications
Sensor Type: InfiRay MICRO II
Device Technology: Thermal Imaging
Sensor Pixel Size: 12μm
Sensor Frame Rate: 50hz
Sensor Resolution: 384×288
Thermal Sensitivity: <25mk
Non-Uniformity Correction (NUC): Manual, Automatic, Semi-Automatic
Physical
Mounting Interface: 30mm Rings for Picatinny/Weaver (included)
Housing Material: Aluminum Alloy
Weight: 25.40 oz
Height: 2.76 in
Width: 2.76 in
Length: 12.20 in
Features & Performance
Warranty: 5 years, with a 5 day turnaround time
Startup Time: Under 10 Seconds
Rangefinder: Bluetooth ILR-1200-1 LRF (Optional)
Color Palettes: White Hot, Black Hot, Red Hot, Color, Highlight
Picture-in-Picture: Yes
Storage Capacity: 32GB
Connector Output: Power/Data
User-Updatable Firmware: Yes
Mobile App: Yes
Run Time: 8+ hours
Power Source: USB-C External, Built-In Battery Pack
One-Shot Zero: Yes
Stand-by Mode: Yes
Reticle: 6 (1 Dynamic, 5 Static)
Connector Type: USB-C
Wifi: Yes
Onboard Recording: Yes
Image Capture: Yes
External Power Source: USB-C
Fabricante | Infiray Outdoor |
---|---|
Artículo | TL25SE |
GTIN (UPC / EAN) | 850048751033 |
Peso (gramos) | 720 |
País de fabricación | China |
Aumento mínimo | 2.00 x |
Ampliación máxima | 8.00 x |
diámetro del tubo central | 30mm |
Diámetro lente frontal | 25mm |
longitud total | 31.00 cm |
Grupo de productos | Visores de imágenes térmicas |
Garantía del fabricante | 5 años |
Color | negro |
Retícula | Retícula múltiple |
